Dual Cam non-locking clamps to lift single or stacked plates. Used in pairs, sets of pairs, or in a tripod arrangement to lift and transfer plate in a horizontal position only.

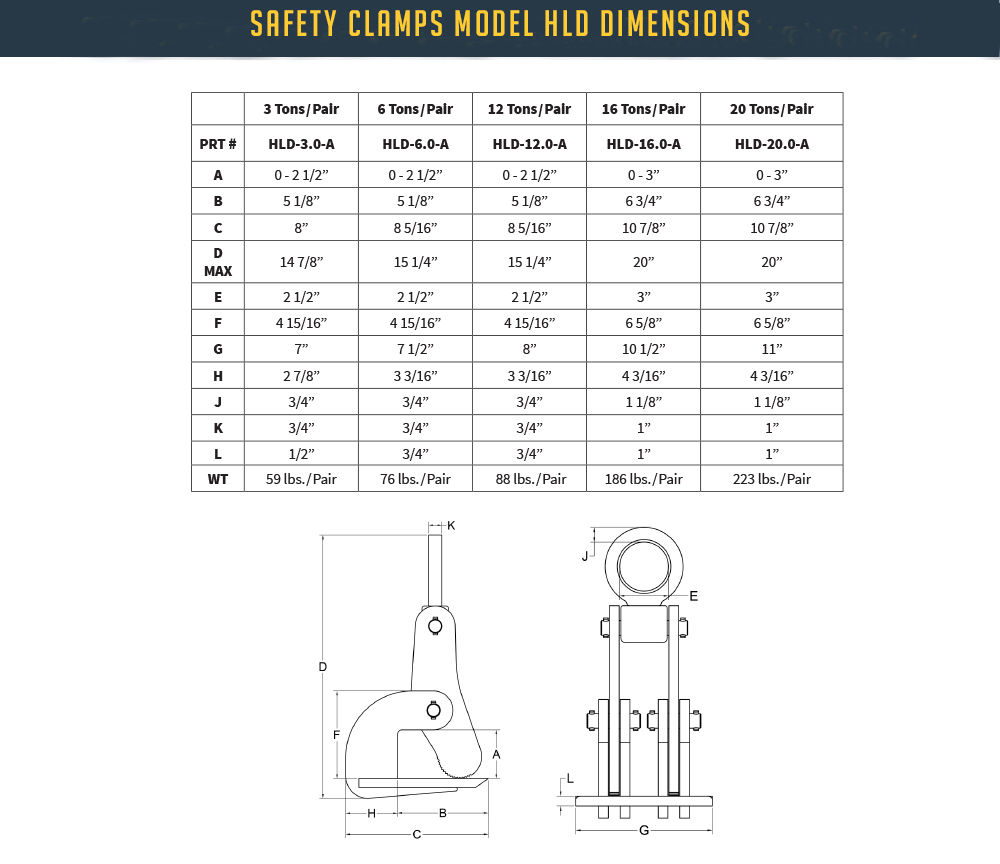

Model HLD – Horizontal Lifting Clamp Features

Dual cam non-locking horizontal lifting clamp used in pairs or any multiple arrangements to lift and transfer a single plate or stacked plates in a horizontal position only

Non-locking

Rated to lift material with a surface hardness of up to 450 Brinell

Non-Marring is available for material with a surfaced hardness in excess of 450 Brinell

Extra Wide Jaw Openings available with Model HLDW

  • Special jaw openings are available upon request.

As the top sling angle increases, the clamp’s rated capacity decreases.

Rated capacities are per pair:

  • 0 – 60° top sling angle: 100% rated capacity
  • 61 – 90° top sling angle: 75% rated capacity
  • 91 – 120° top sling angle: 50% rated capacity
