Capable of vertically lifting, transferring, and stacking steel beams in the “H” position when the lifting eye is over the web. Do not use on plate material.

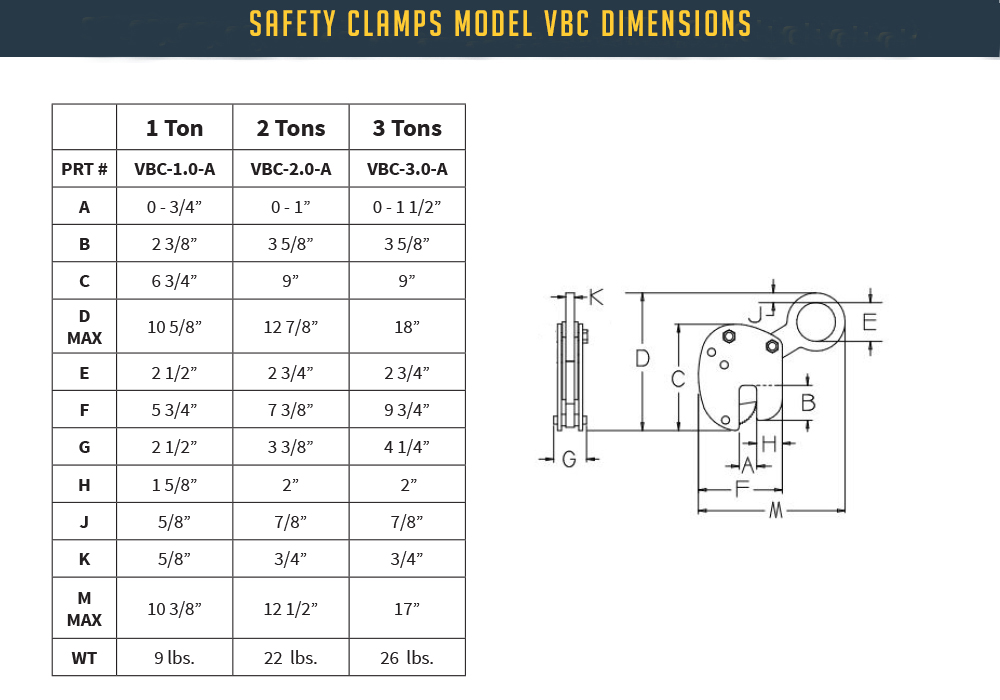

MODEL VBC – Structural Lifting Clamp Features
Specially designed for lifting, transferring, and stacking beams in the “H” position
when the lifting eye is over the web.
Vertical Lift Only
- Do not use to lift plate steel.
Rated to lift material with a surface hardness of up to 450 Brinell
- 2 & 3-ton lift capacities have dual upper gripping cams and a self-aligning lower gripping pad for more stability and longer gripper life.
