The Model V is designed to lift and transfer a single steel plate in a vertical position only. Do not use it to lift material from a horizontal position to a vertical position.

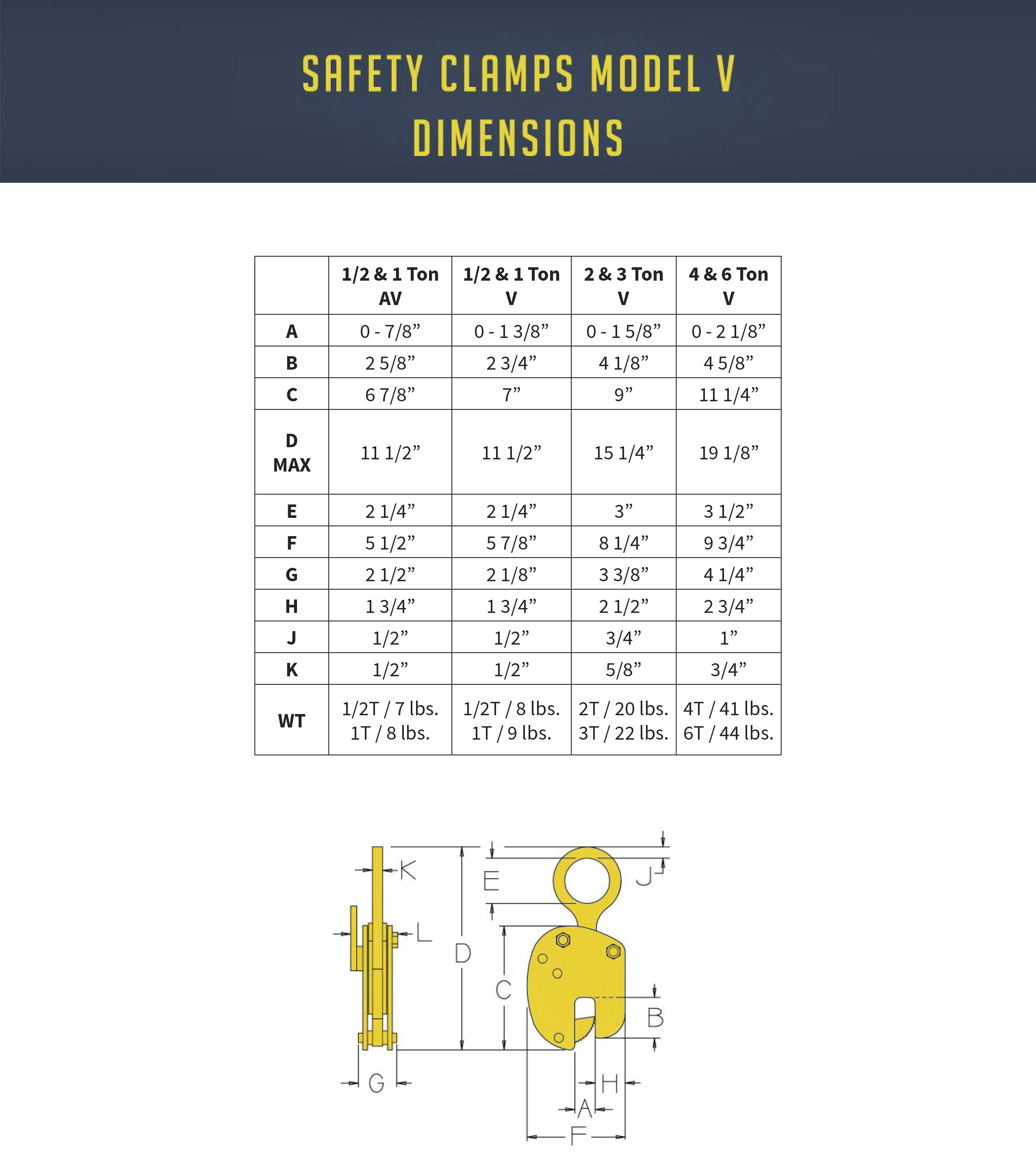

Model V – Vertical Lifting Clamp Features:

Vertical Lifting Clamp – Non Locking

Vertical Lift Only

  • Lifts and transfers a single steel plate in a vertical position only.
  • Do Not use for horizontal to vertical lifts.

Rated to lift material with a surface hardness of up to 450 Brinell

  • The unique design has 2 upper grippers and 1 lower gripper on our 2-ton and larger capacities – providing for more stability and longer gripper life.
  • Stainless grippers are available as an option.

Wide Jaw Openings

Working Parts Enclosed

  • Working parts remain inside the body when the clamp at all times.

Stainless Grippers

Universal Shackle

Allows for side loading of lifting shackle up to 90°. The rated lift capacity is lowered as the angle of the pull increases.

Auxiliary Lock

Double locking mechanism in the "locked closed" position. Requires the user to utilize a push button release before moving the lock handle to the open position. Remote release is NOT available in this model.

Stainless Grippers

For handling stainless steel plate without contamination. Serated for a more secure lift.
