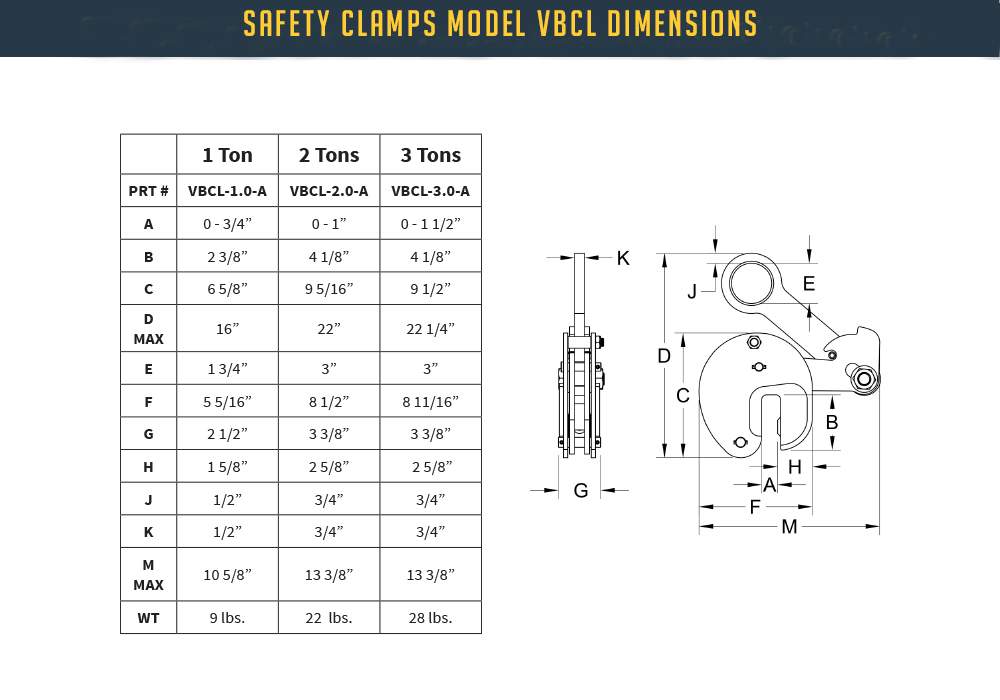

Model VBCL
The model VBCL includes all the features of the model VBC, plus a linkage that allows the clamp to be removed remotely by setting the load down to slacken the sling, then lifting the crane hook.
MODEL VBCL – Structural Lifting Clamp Features
Specially designed for lifting, transferring, and stacking beams in the “H” position when the lifting eye is over the web. The model VBCL includes all the features of the model VBC, plus a linkage that allows the clamp to be removed remotely by setting the load down to slacken the sling, then lifting the crane hook.
Vertical Lift Only
- Do not use to lift plate steel.
Non Locking
Rated to lift material with a surface hardness of up to 450 Brinell
- 2 & 3-ton lift capacities have dual upper gripping cams and a self-aligning lower gripping pad for more stability and longer gripper life.
