Safety Clamps Model SBC

Structural Lifting Clamp-Horizontal Lift

Structural Beam Clamp that is designed to horizontally lift, transfer, and position girders, beams, and other structural shapes.

Model SBC – Structural Lifting Clamp Features:

Structural Lifting Clamp-Horizontal Lift

Locks Open and Closed

  • Locks open to facilitate loading and unloading clamp and protects grippers from damage.
  • Locks closed onto the material for a more secure lift.

Remote Release Lock Handle

  • By attaching a tagline to the lock handle, the operator is able to lock open the clamp from a distance when the load is at rest and secured.

Rated to lift material with a surface hardness of up to 450 Brinell

  • The unique design has 2 upper grippers and 1 lower gripper on our 2-ton and larger capacities – providing for more stability and longer gripper life.
  • Stainless serrated grippers or non-marring grippers are also available.

Working Parts Enclosed

  • Working parts remain inside the body when the clamp is locked closed and when the clamp is locked open.
  • Protects parts from damage when in use and when the clamp is stored.

Stainless Grippers

Universal Shackle

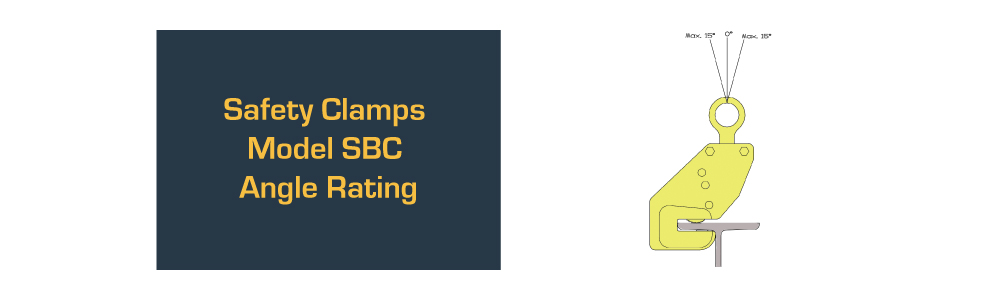

Allows for side loading of lifting shackle up to 90°. The rated lift capacity is lowered as the angle of the pull increases.

Auxiliary Lock

Double locking mechanism in the "locked closed" position. Requires the user to utilize a push button release before moving the lock handle to the open position. Remote release is NOT available in this model.

Stainless Grippers

For handling stainless steel plate without contamination. Serated for a more secure lift.
